SIP Package Types

Flexible for your specific needs, Insulspan® provides a variety of SIP products. Many clients prefer their panels to arrive ready-to-assemble (RTA). While clients who have more experience or special project needs select blank panels. Regardless of what products you need, all Insulspan manufacturing occurs in a quality-controlled environment. This manufacturing process ensures that you receive superior results in a consistent manner.



SIP Panel Packages

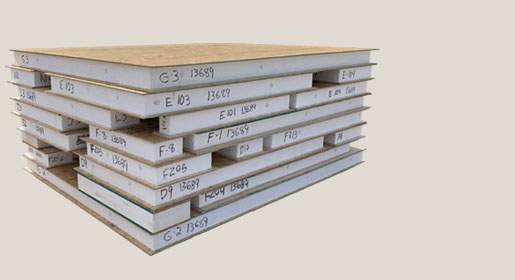

Precut SIP Package

Have your panels delivered to the job site ready for you to assemble, without needing to relieve the foam or make any cuts. The Precut option reduces your need for on-site preparation and doesn’t require any specialized tools, or mitigation for large amounts of foam waste.

Includes:

  • Custom SIP design and site prints
  • PE stamp (optional)
  • Wire chases
  • Panels cut to size, openings, bevel, etc.
  • Foam relieved to accept splines / lumber
  • Required accessory materials (see below)

Does not include:

  • Lumber
  • Lumber headers

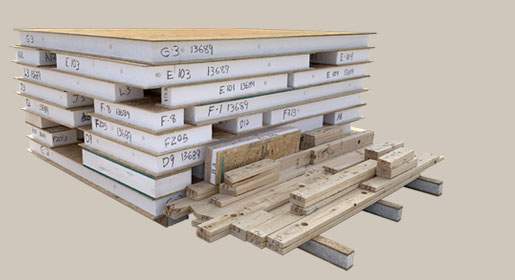

Precut + Lumber Package

This option includes Precut Panels plus all the Lumber you need in order to fully install your SIP envelope. The lumber is cut to size for easy installation on-site. Further reducing your installation time and site waste.

Includes:

  • Precut Panel Package
  • Lumber headers
  • All required lumber cut to size and drilled for wire chases – watch video
    • Panel splines, corner connections, door & window bucks, top & bottom plates, eave & rake sub-fascia

Does not include:

  • Treated sill plate
  • Lumber installation



Architectural-grade glulam beams are available if needed

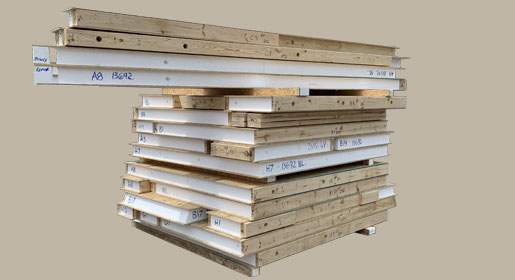

Ready-T0-Assemble (RTA) Package

For the speediest option, you may choose our RTA Panel Package where the SIPs arrive on-site, ready to be installed. This option is perfect for first-time SIP builders and smaller crews, as less labor is required.

Includes:

  • Precut + Lumber Package
  • Lumber installation (except where lumber spans multiple panels)

Does not include:

  • Treated sill plate



Architectural-grade glulam beams are available if needed

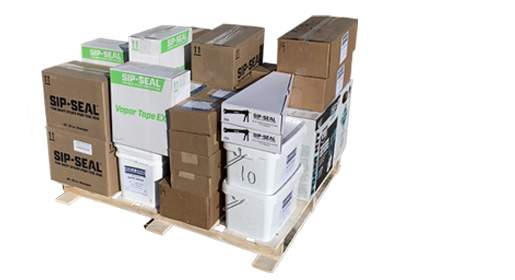

Required Accessory Materials Provided

Includes:

  • Panel Screws & 2” washers
  • Sealant
  • Sealant gun
  • House wrap & tape
  • Lifting plates
  • Asphalt roof caulk (roof only)
  • Seam seal tape (roof only)
  • Two-part foam (as required)



Blanks

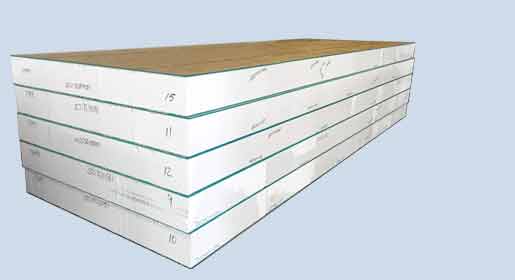

Standard Sized Blank Panels

If you are highly familiar with SIP building, blank panels may work best for your project. Choosing blank panels requires the experience, and the capability, of completing fabrication on your own construction site.

Features:

  • Standard sizes: 8′ x 12′, 8′ x 20′,  8’ x 24’
  • Available with or without electrical chases
  • No cuts
  • No foam relief

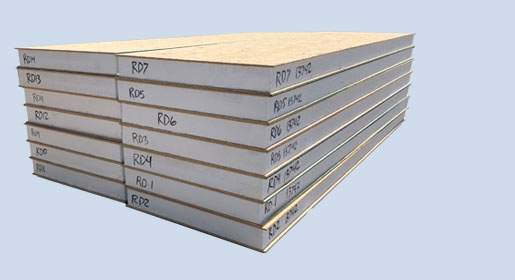

Cut-To-Size

We can pre-cut the blank panels to match your drawing specifications if you know the exact size and shape of the panels needed for your project.

Features:

  • Does not include design services
  • Cut to your provided specifications
  • Available with or without foam relief
  • Available with or without electrical chases
